A much cheaper way to cut pocket holes with a Kreg Mini jig.
Inspiration
This project mostly came from Earl Davidson, who made a more advanced version with an adjustable guide and Dave at Carnation Construction who made his with a 2×6.
It’s come in handy on several projects, including the DIY Server Box and the Floating Nightstand. Moving the Kreg Mini, lining it up right and clamping it square is the most time-intensive part of using it. This jig simplifies that and the hot glue is only there to hold it in place since you clamp onto the Kreg itself and not the jig. It would be cool to make a pocket hole machine like Trevor Green but I don’t want to use up the space as my jig, bits, and screws all fit in a gallon ziplock right now.
Gallery
-

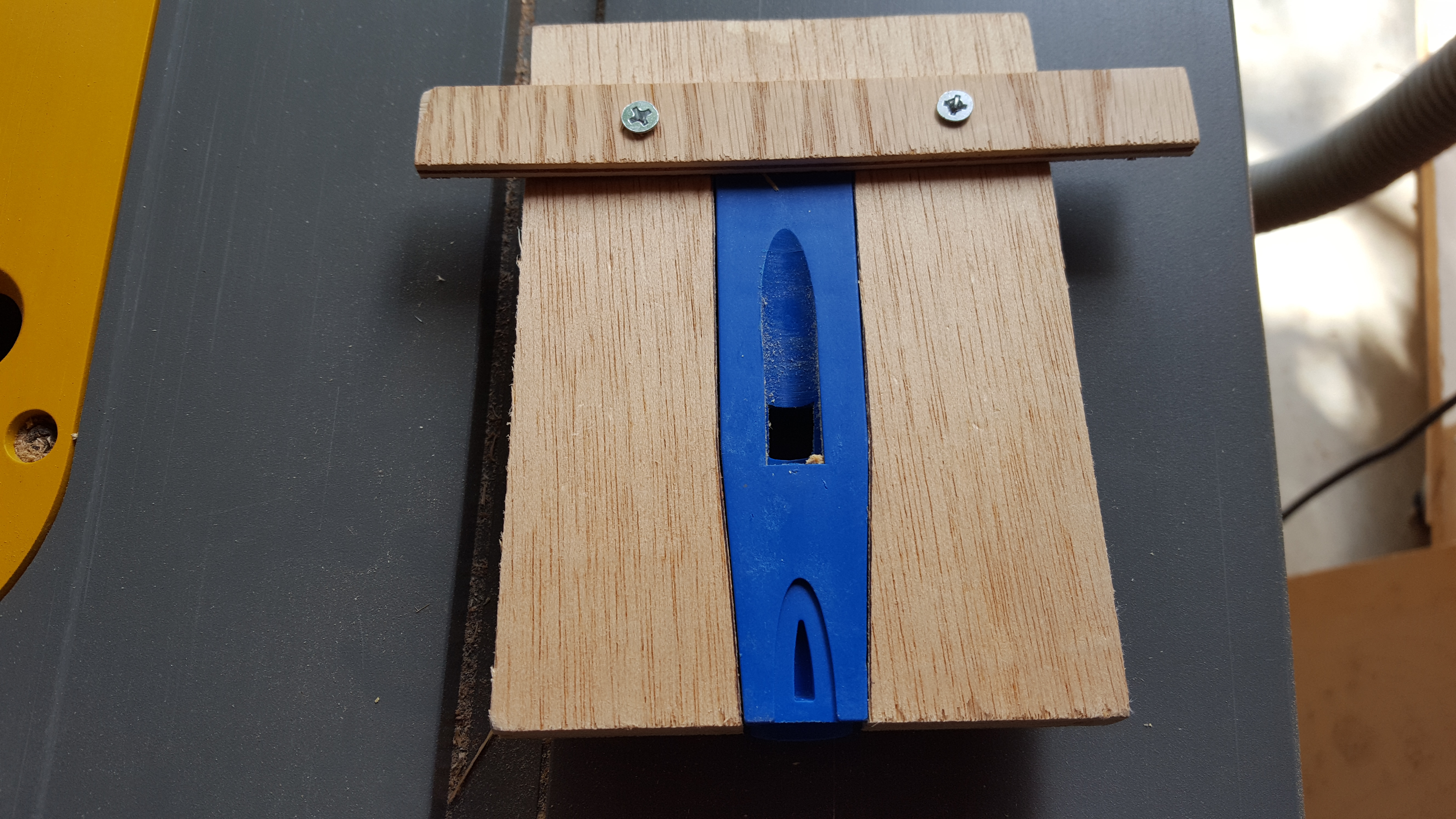

- From the top it’s just a piece of plywood with a hole just the right shape for the Kreg Mini cut in it
-
- 1/2″ plywood with a 1/8″ strip as the stop
-
- From underneath the Kreg Mini and plywood are flush. Used screws to readjust if needed for different thickness woods
-
- Harbor Freight clamps make moving the jig easy
-

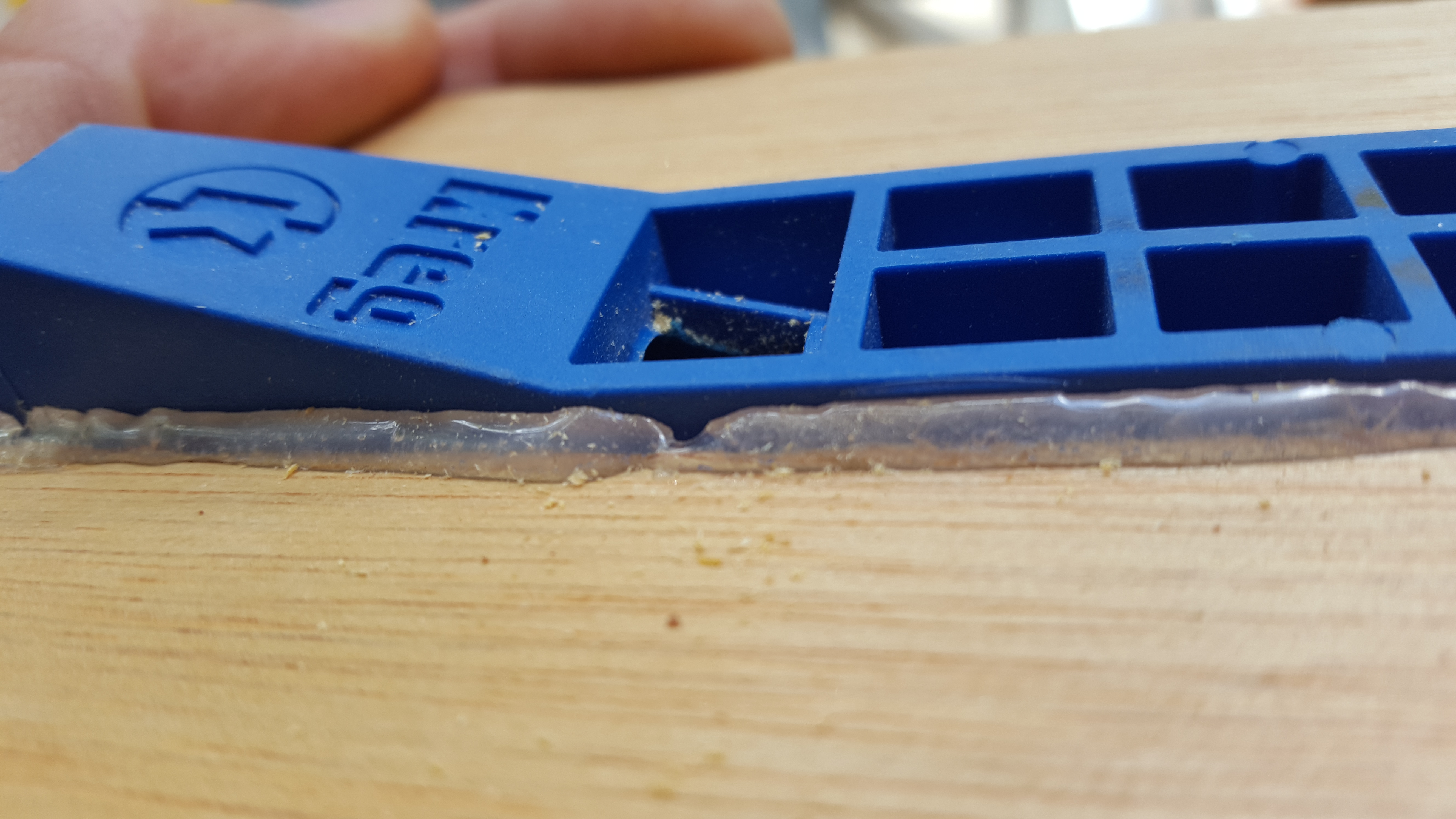

- Only the finest hot glue holding the jig together
-

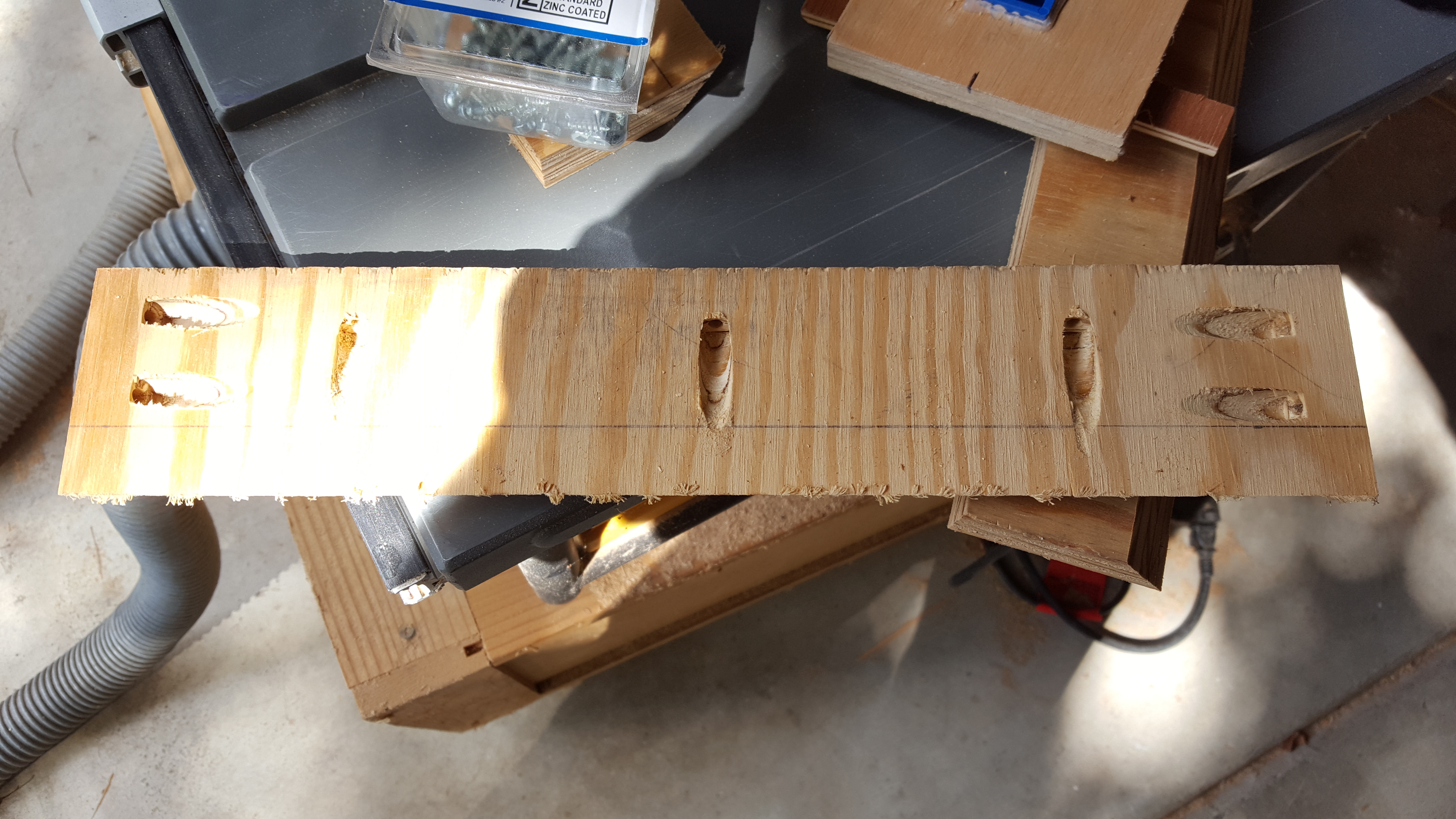

- Seven pocket holes take about a minute
-
- And all screwed in place
