Adding DINSE Style Quick Disconnects to Lincoln AC-225

I was inspired by Gregory Hildstrom to do some upgrades to my Lincoln AC-225.  The first is to add some quick disconnects to the front panel.

Parts List

Quick Fitting Cable connector-Plug + Socket DKJ10-25 & DKZ10-25 $1.60 x 4 = $6.40 + shipping

3/4″ Forstner drill bit (I used this since it’s what I had at the time.  I recently started using stepped drill bits for things like this and they are MUCH better!)

Drill

Small file

Allen wrench

Work

The first step was opening it up and adding quick disconnects to the front panel.  I found some cheaper DINSE-style connectors that set me back about $15 for four male and four female from River-Weld.  They aren’t as solid as name brand connectors and are only “rated” up to 200 amps, but they should work fine for me.

I also found a post and also a video on doing this that was helpful.  The video goes into the upgrade in-depth and he also explains the importance of keeping the panel connector separate from the body.

IMG_20160425_182025

Schematic from the welder

IMG_20160523_195409

Using a Forstner drill bit to cut a 3/4″ hole in the front panel

IMG_20160523_200831

The front of the connector goes through and the notch at the 2 o’clock position keeps it from rotating when installed

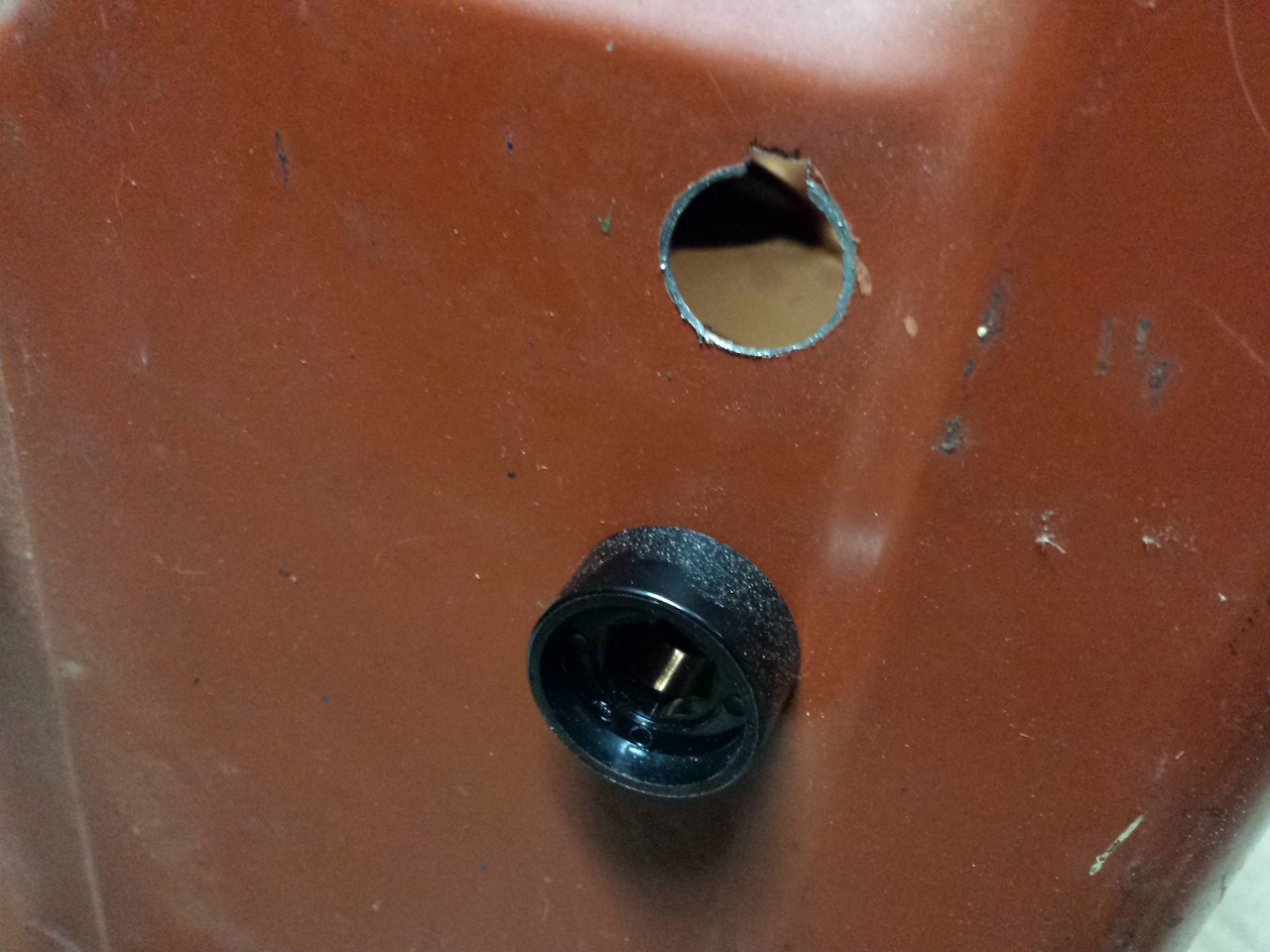

IMG_20160523_200843

Hole cut and notch ground with a file

20161002_211545

The brass insert comes in from the front, a washer and nut secure it from the back, and a bolt will hold the lugs on

20161002_211430

I kept the original holes in the front for the AC connection and will wire the other two for DC

IMG_20160523_204023

Welding lead cut and stripped

IMG_20160523_204050

Copper collet attached that comes with each connector

IMG_20160523_204154

Adapter placed over the collet

IMG_20160523_204314

…and tightened down

Outcome

They aren’t as strong or feel as secure as ones on 100% duty cycle machines I’ve used, but for my garage and the 2x a year I’ll use it, they should do fine!

IMG_20160523_204631

The first two connectors installed

IMG_20160527_204630



All four connectors installed and labeled

All four connectors installed and labeled

The next step is adding DC outputs.

Sources

http://weldingweb.com/showthread.php?141101-removable-leads-for-Lincoln-tombstone

http://hildstrom.com/projects/ac-225/
